The LED module allows easy plug and play configuration to your Arduino’s I/O lines. The LED can be controlled through a PWM signal or a digital high/ low output.

Features

  • 100% Arduino Compatible
  • Operating voltage input : 5V (regulated)
  • Digital/pulse width modulation output
  • 25 mA operating voltage rating



Downloads

OSEPP LED Modules Schematic
OSEPP LED Modules Source Codes



Stock Code Product Name
LEDBL-01 LED Module – Blue
LEDGN-01 LED Module – Green

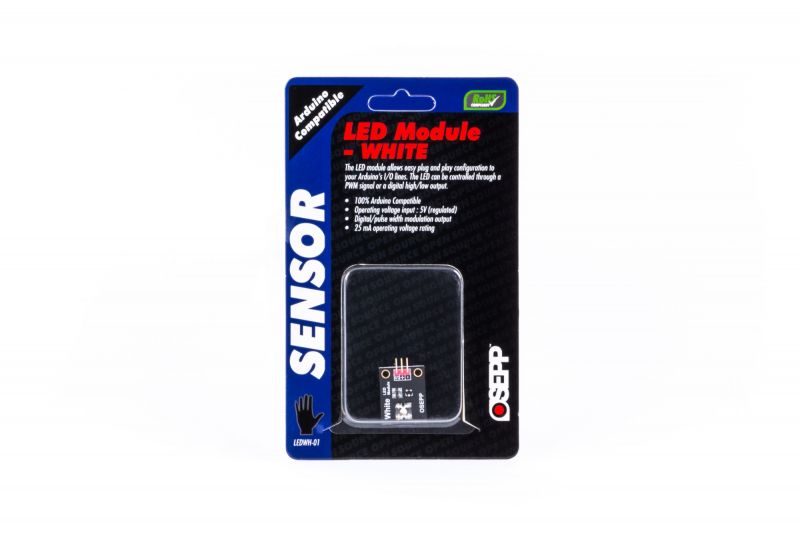

LEDWH-01 LED Module – White
LEDYL-01 LED Module – Yellow

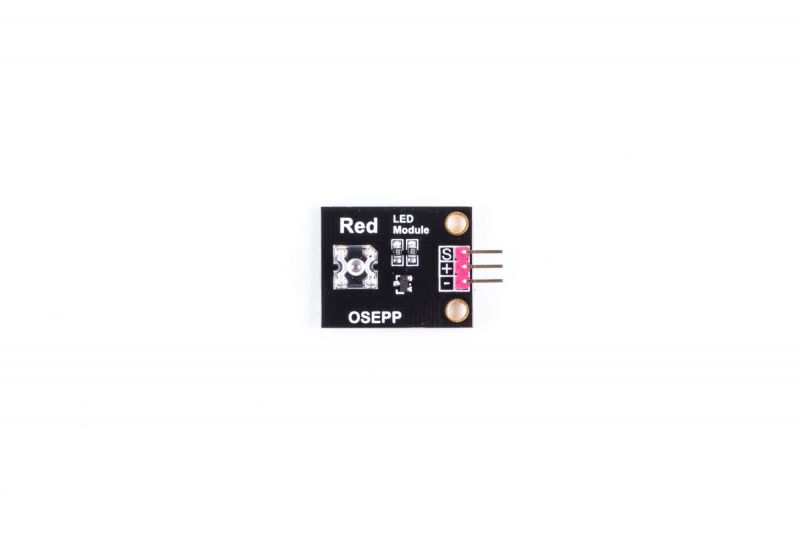

LEDRD-01 LED Module – Red

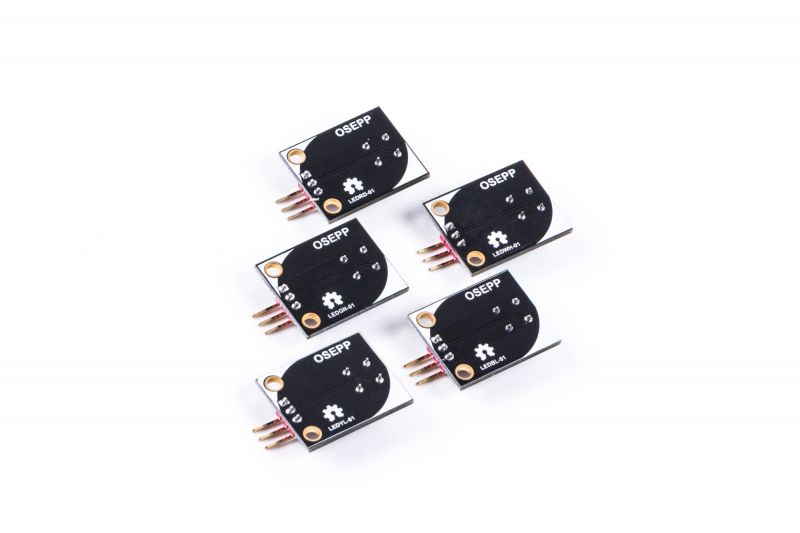

LEDMX-01 LED Module Set: Blue, Green, Red, Yellow and White
