Suitable for hobby, models, science and other projects.
- Comparable to Servocity # 3348S00
- Voltage Range: 4.8 – 7.2 Volts
- Stall Torque (6.0V): 11 kg.cm
- Stall Torque (4.8V): 9.4kg.cm
- JR Wire Configuration
- No-load Speed (6.0V / 4.8V): 0.14sec/60° / 0.17sec/60°
- Dimensions: 40.8 *20.1*38mm
- Weight: 56g
- Rotation: 180° degrees
- Output Shaft Style: 25 tooth spline
Downloads |
|
Technical Data Sheet |
Stock Code | Product Name |

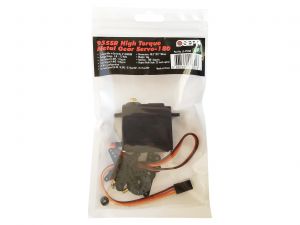

LS-955SR | High Torque Metal Gear Servo-180° |
